Online Ticket Database Management System

Project Overview

Developed as part of SDSU’s MIS 686 course, this project implements a full-stack online ticket reservation system. It manages events, venues, customers, bookings, and payments using a structured relational database deployed on AWS RDS. For analytics and business intelligence, a Python-based interactive dashboard was created using the Datapane library within a Jupyter Notebook environment.

Step-by-Step Process

  1. Topic Selection: Designed for an online ticket reservation platform that handles multiple venues, events, customer types, discount options, and payment methods.
  2. Data Modeling: Created a conceptual ERD and translated it into a relational schema with appropriate keys and relationships to enforce business rules and support query optimization.
  3. Implementation: MySQL-based DDL and DML scripts were used to define the schema and populate the database with realistic sample data, generated using ChatGPT and external tools like Google Sheets.
  4. Deployment: The database was deployed on AWS RDS with two IAM roles: mis686-databaseAT-admin (full access) and mis686-database-user (read-only access).
  5. Analysis and Dashboard: SQL queries were written to answer business questions related to revenue, customer behavior, and venue performance. Python (via Jupyter Notebook) and the datapane library were used to generate an interactive dashboard for visualizing the insights.

ERD & Schema

The data model includes core entities such as Customer, Event, Venue, Booking, and Payment. It supports complex relationships like many-to-many (e.g., customers and events) and includes supertype-subtype design for customer types (e.g., regular, VIP).

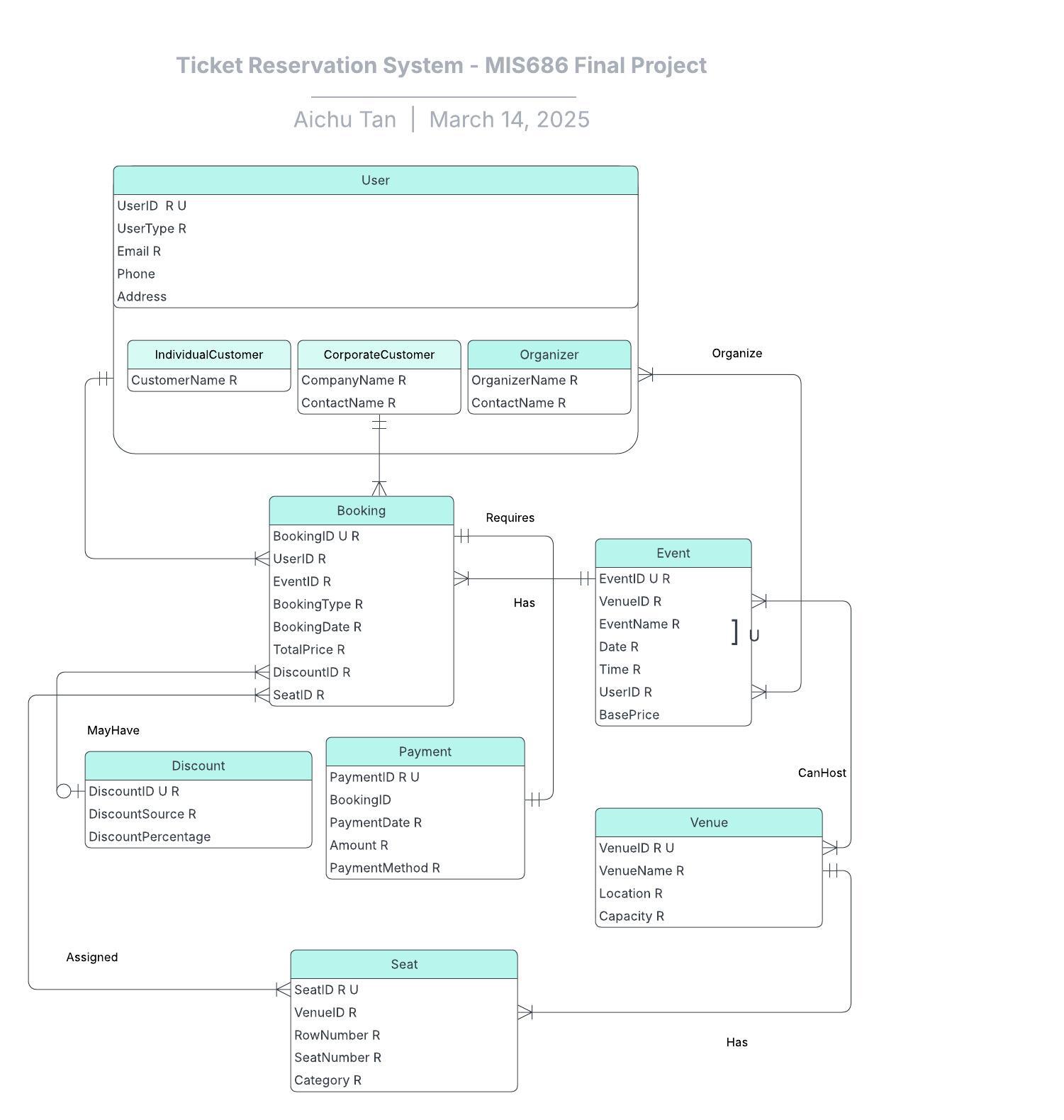

ERD Diagram
Figure 1: Entity-Relationship Diagram (ERD)

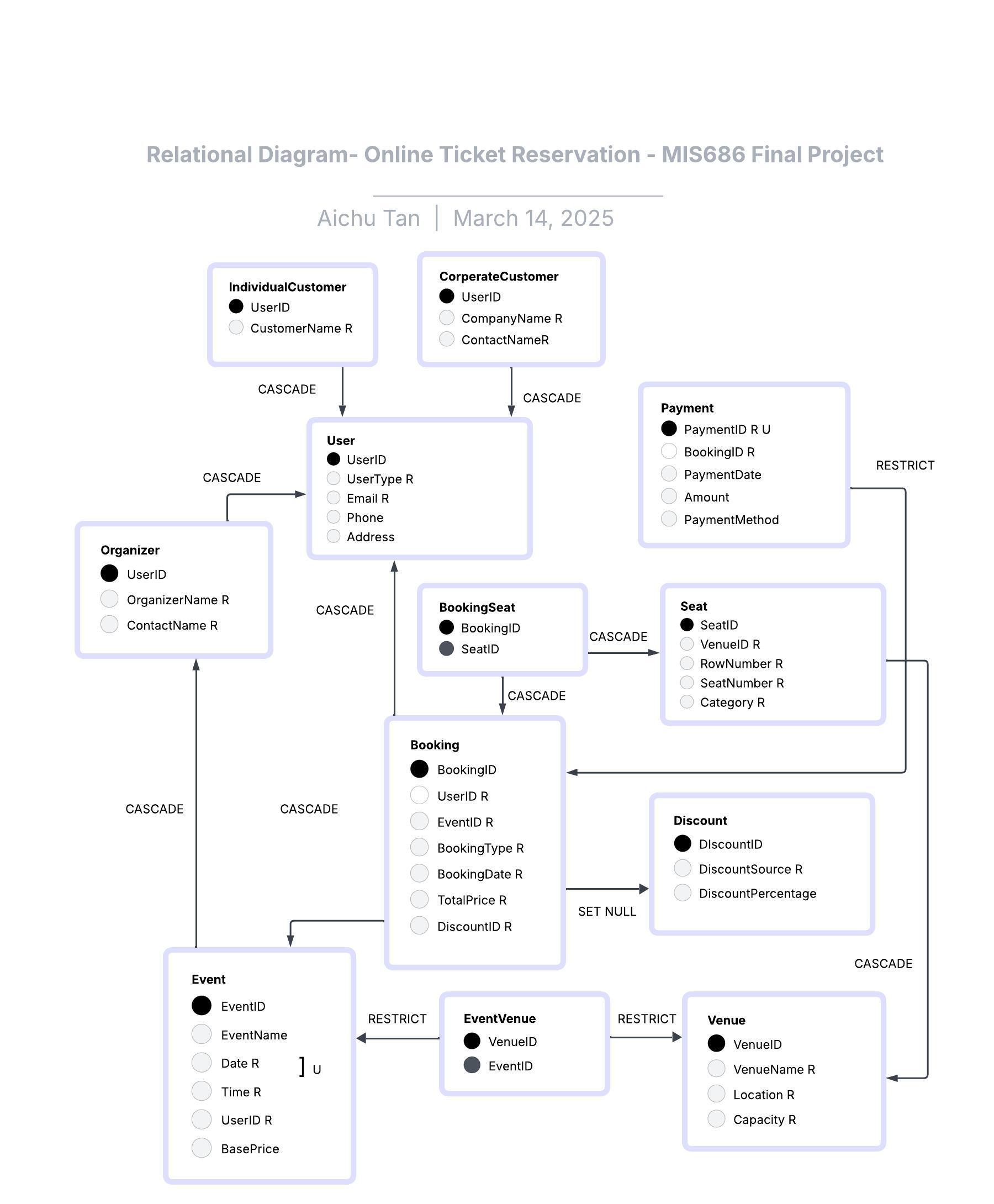

Relational Diagram
Figure 2: Relational Schema Diagram

Key SQL Features

Analytics Dashboard

The dashboard was developed using a Jupyter Notebook and includes visualizations for KPIs such as:

▶ View Dashboard
